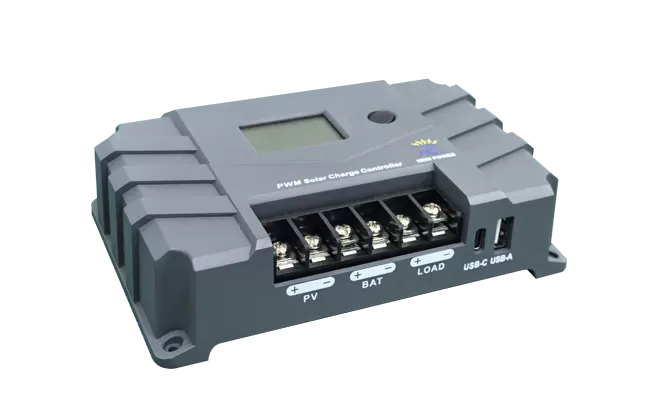

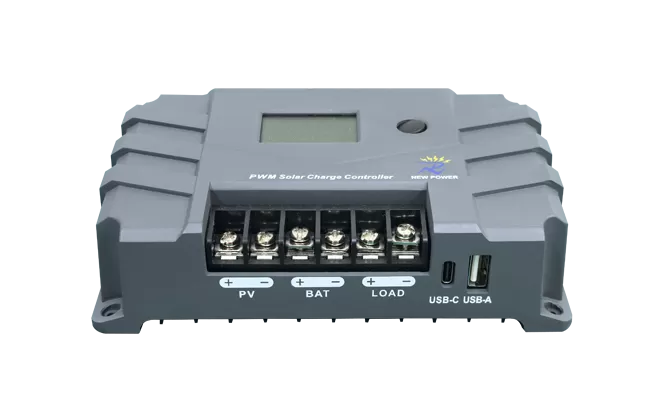

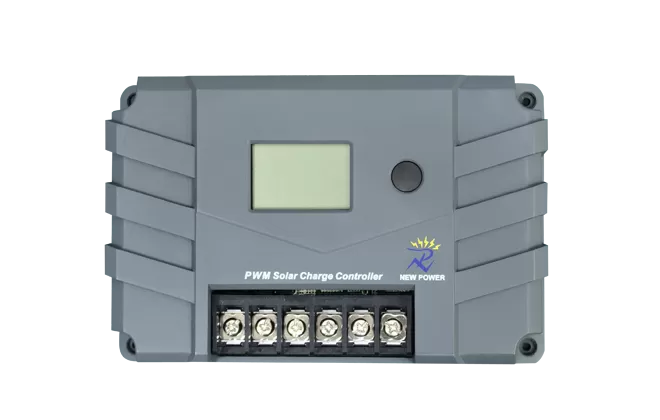

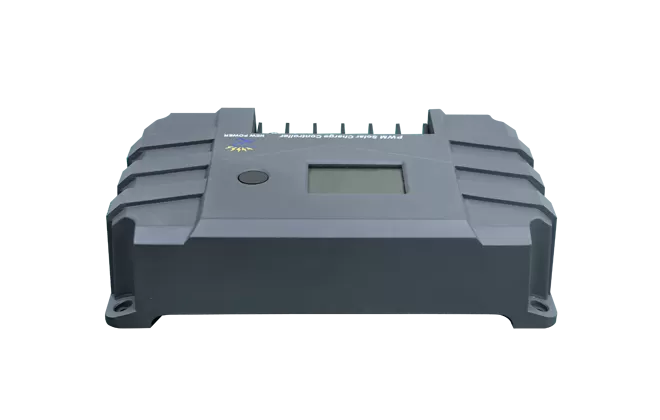

10A PWM Solar charge controller
Product Parameters
| Model | PWM-10A | PWM-30A | ||
| Rated current | Charge | 10A | 30A | |
| Load | 10A | 30A | ||
| Rated power | 12V/150W 24V/300W |
12V/450W 24V/900W |
||
| System voltage | 12V/24V/U--(automatic identification) | |||
| No-load loss | <7mA/12V；<10mA/24V | |||
| Maximum PV input voltage |
Start the protection and stop charging when the voltage is above 55V. Continue to charge when the voltage is below 50V. |
|||
| Maximum allowable voltage at the battery end |
<32V | |||
| Battery type | b01(SLD) ×2/24V | b03(FLD) ×2/24V | ||
| Over-voltage protection | 16.0V | 16.0V | ||
| Equalizing charging voltage |
14.6V | 14.8V | ||
| Boost charging voltage | 14.4V | 14.6V | ||
| Float charge voltage | 13.8V | 13.8V | ||
| Charging reconnect voltage |
13.2V | 13.2V | ||
| Over-discharge reconnect voltage |
12.6V | 12.6V | ||
| Over-discharge voltage | 11.1V | 11.1V | ||
| Equalizing charging time | 2H | 2H | ||
| Boost charging time | 2H | |||
| Charging method | PWM charging is the default mode, and b04/b07 can be set to pulse charging | |||
| USB-A output | USB dual-port output (maximum 2A) |
5V/2.1A | ||
| USB-C output | / | 5V/2.1A | ||
| Operating temperature | -35℃ to 60℃; | |||
| Altitude | ≤3000m | |||
| Protection grade | IP32 | |||
| Net weight | 120g | 290g | ||
| Protection function | solar panel short-circuit protection; battery panel and battery reverse connection protection |
|||
| Over-temperature protection, load overload protection, and short-circuit protection |
||||
| Product dimensions | 116*76*38mm | 155*102*43mm | ||
