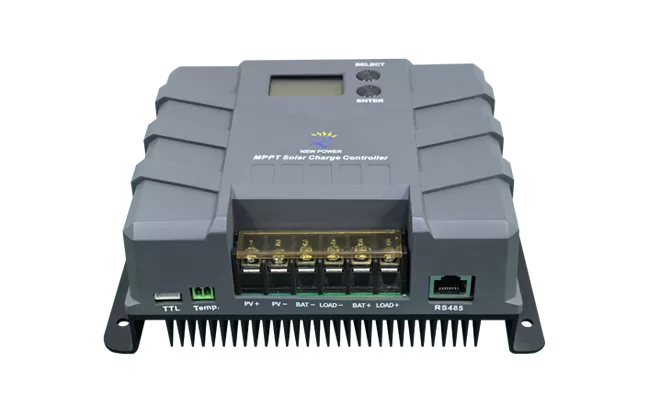

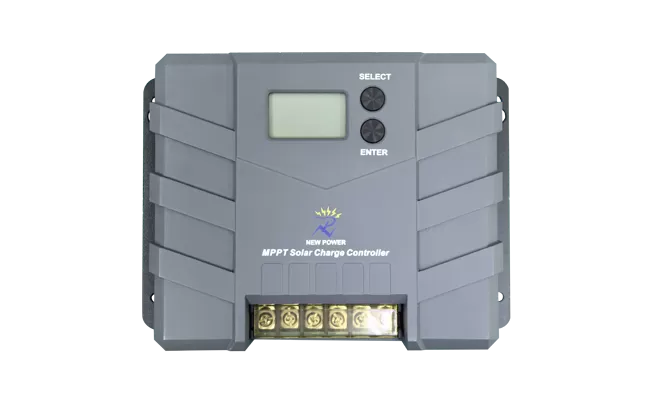

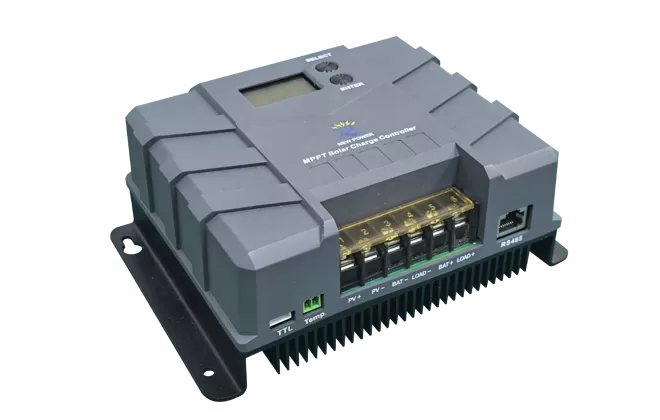

30A MPPT Solar charge controller
Product Parameters
| Product model | MPPT-10A | MPPT-20A | MPPT-30A | MPPT-40A | MPPT-60A | ||
| Static power consumption | ≤10mA | ||||||
| Battery Type | SLD/GEL/FLD/LI/USE/USELI, SLD as default | ||||||
| System voltage | 12V/24V | ||||||
| Battery operating voltage range |
8V-32V | ||||||
| Rated charging current | 10A | 20A | 30A | 40A | 60A | ||
| Maximum solar panel power |
130W/12V 260W/24V |
260W/12V 520W/24V |
400W/12V 800W/24V |
520W/12V 1040W/24V |
800W/12V 1600W/24V |
||
| Maximum PV open-circuit voltage |
60V (55V protection, 50V recovery) | 100V (95V protection, 90V recovery) | |||||
| MPPT operating voltage range |
(Battery voltage +2V)~45V | (Battery voltage +2V)~72V | |||||
| MPPT tracking efficiency | >99% | ||||||
| Charging conversion efficiency |
85%-98% (10%-100% of rated power) | ||||||
| Rated load current | 10A | 20A | |||||
| Load operating mode | Light control, light control + time control, manual mode (default), debugging mode, normally open |
||||||
| Charging current setting | √ | ||||||
| Full-charging setting | √ | ||||||
| Constant voltage output setting |
√ | ||||||
| Charging temperature compensation of lead-acid battery |
√ | ||||||
| Temperature unit setting | √ | ||||||
| Overload/Short-circuit protection |
√ | ||||||
| USB-A USB-C Output | 2x 5V, 2.4A Max | ||||||
| TTL communication | Baud rate: 9,600 bps | ||||||
| RS485 communication | RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable. |
||||||
| Bluetooth communication |
Optional | ||||||
| CAN communication | RJ45 interface, optional (RV-C protocol) | ||||||
| Historical data | Save the last 200 days of historical data | ||||||
| Protection function | PV overvoltage protection, PV reverse connection protection , PV short- circuit protection , night reverse charging protection , input power limit protection , over-temperature protection , load short-circuit protection , overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection. |
||||||
| Grounding type | Grounding of common negative electrode | ||||||
| Operating ambient temperature range |
-35℃~65℃ | ||||||
| Protection grade | IP32 | ||||||
| Cooling mode | Natural heat dissipation | ||||||
| Dimension | 155*99*41.7mm | 181*118*61.7mm | 187*133*72mm | 228*160*72mm | 261*186*82mm | ||
| Weight | 0.35kg | 0.65kg | 1.03kg | 1.75kg | 2.4kg | ||
