Overload Protection
Over Temperature Protection
High/Low Voltage Protection
Short Circuit Protection
External Reverse Polarity Protection
Ultra-Low Power Comsumption in Shutdown Mode
Images

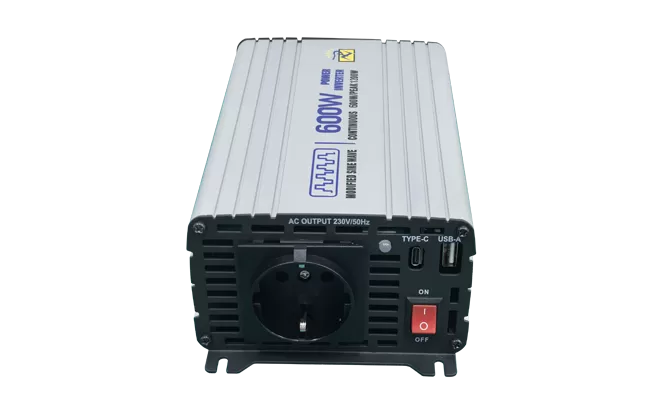

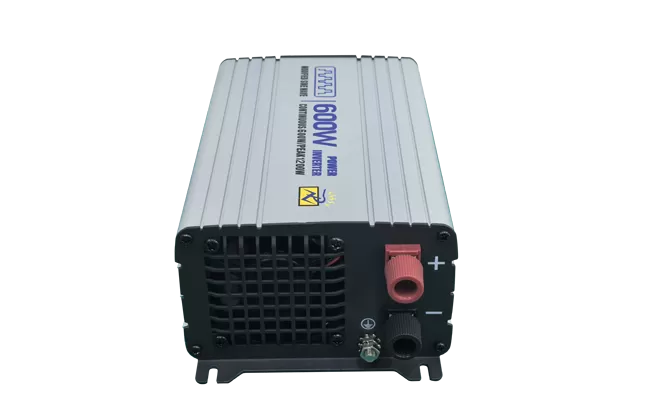

NP-MS600E-12 600W Modified Sine Wave Inverter
Product Parameters
| Continuous Power: 600 Watts |
| Rated Power with ≥10% Design Margin |
| Peak Surge Output: 1200 Watts |
| DC Input Voltage: DC 12 V (11-15 V) |
| AC Output Voltage: 230VAC±10% |
| Frequncy: 50 Hz ±1 |
| Conversion Efficiency: >92% |
| DC Input Static Current(No Load): ≤0.3A |
| USB-A: 5 V/2.4 A*1 |
| Type C: QC 3.0 (5V/3A,9V/2A,12V1.5A) |
| AC Outlets: 1 |
| Power Saving Mode (Eco Mode): Selectable |
| DC Input Current (Power Off): ≤20 mA |
| Operating Temperature:-10°C~40°C |
| Operating Humidity: 20% ~ 90% RH (Non-Condensing) |
| Storage Temperature: -30°C~80°C |
| Storage Humidity: 10% ~ 95% RH (Non-Condensing) |
| Dimensions：L165*W105*H63mm |
| Net Weight：0.75KG |
