Product Code: PST5000-12
Overload Capability: 5500 W (≥ 110% of rated power)
Overload Protection
Over Temperature Protection
High/Low Voltage Protection
Short Circuit Protection
External Reverse Polarity Protection
Power Saving Mode
Ultra-Low Power Comsumption in Shutdown Mode
Images

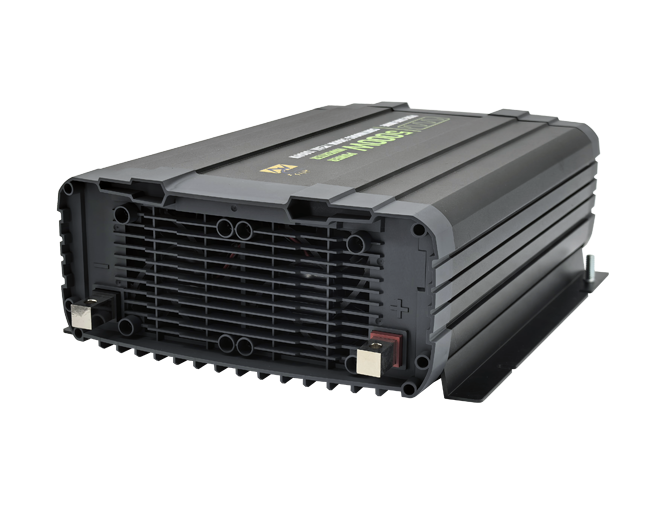

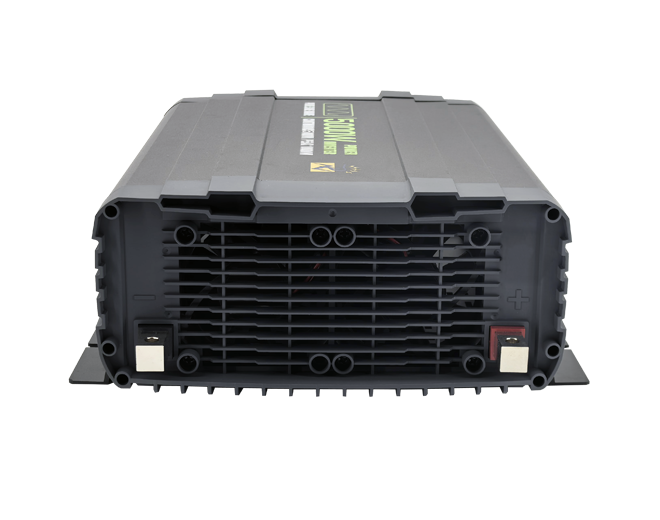

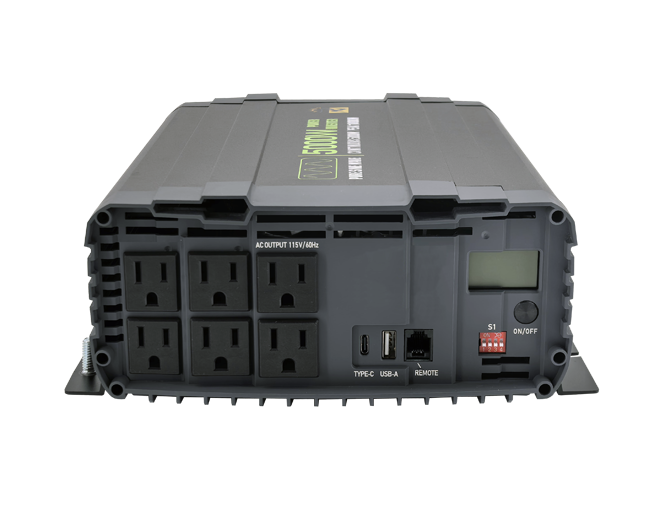

5000W 12V Pure Sine Wave Inverter
Product Parameters
| Continuous Power: 5000 Watts |
|
Overload Capability: 5500 W (≥ 110% of rated power) |
| Peak Surge Output: 10000 Watts |
| DC Input Voltage: DC 12 V (11-15 V) |
| AC Output Voltage: US Spec 120 Vac ±10% ; EU Spec 230 Vac ±10% |
| Frequncy:US Spec 60 Hz ±1 ; EU Spec 50 Hz ±1 |
| Pure Sine Wave THD: US Spec< 4%; EU Spec THD<3% |
| Conversion Efficiency: >92% |
| DC Input Static Current(No Load): ≤0.3A |
| USB-A: 5 V/2.4 A*1 |
| Type C: QC 3.0 (5V/3A,9V/2A,12V1.5A) |
| AC Outlets: US Spec 6；EU Spec 3 |
| LCD Display: DC Voltage, Output Power, High/Low Voltage Protection, Temperature, Overload and Short-Circuit Protection Status Codes |
| Remote On/Off: Supported via Built-in RJ45 Port (Remote Controller Optional) |
| Power Saving Mode (Eco Mode): Selectable |
| DC Input Current (Power Off): ≤20 mA |
| Operating Temperature:-10°C~40°C |
| Operating Humidity: 20% ~ 90% RH (Non-Condensing) |
| Storage Temperature: -30°C~80°C |
| Storage Humidity: 10% ~ 95% RH (Non-Condensing) |
| Dimensions：L425*W235*H125mm |
| Net Weight：7.2KG |
